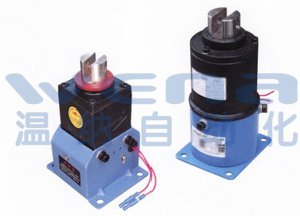

MFZ2-3C,MFB2-3C,电磁铁,温纳电磁铁,电磁铁生产厂家

额定电压
Reated voltage                  (V)

DC:12 24 110
AC:110 220

额定吸力
Rated force                     (N)

≥30

额定行程
Rated stroke                    (mm)

3

全行程
Total stroke                    (mm)

7

通用持续率
Duty cycle                       (%)

100

绝缘等级
Insulation class

F

最高操作频率
Max operation frequency         (t/h)

—

允许电压波动范围
Supply voltage tolerance         (%)

+10～-15

防护等级
Degree of protection

IP55

导套承受油压
Working pressure                 (MPa)

—

消耗功率
Power consumption                (W)

≤30

起动伏安
Inrush VA                        (VA)

—

吸持伏安
Holding VA                       (VA)
